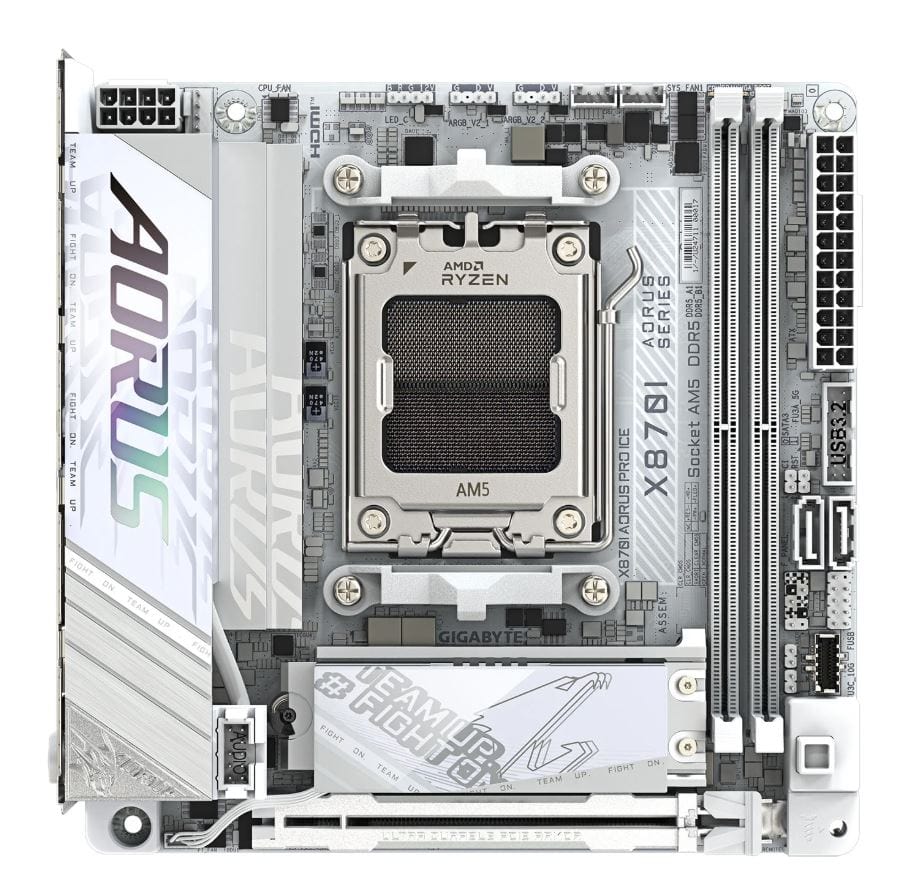

MSI Gigabyte X870I AORUS PRO ICE X870I AORUS PRO ICE Motherboards Gigabyte X870I AORUS PRO ICE

MSI

Gigabyte X870I AORUS PRO ICE

£264.00
Hurry only 3 in stock
iFrame
×

Hide Description

Edition X870I AORUS PRO ICE
Form Factor Mini-ITX
CPU Socket AM5
Chipset AMD X870
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) N/A
Memory Speed (Mhz) DDR5 - 8400(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 5.0 x16
  • 2 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intruder
  • 1 x Clear CMOS jumper
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x M.2 Connector
  • 1 x Noise Detection Header
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB (RGBW) LED Strip Header
  • 2 x SATA III - 6Gb/s
  • 1 x System Fan header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11be WiFi 7 + BT5.3
Rear I/O Connectors
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 4.0 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
