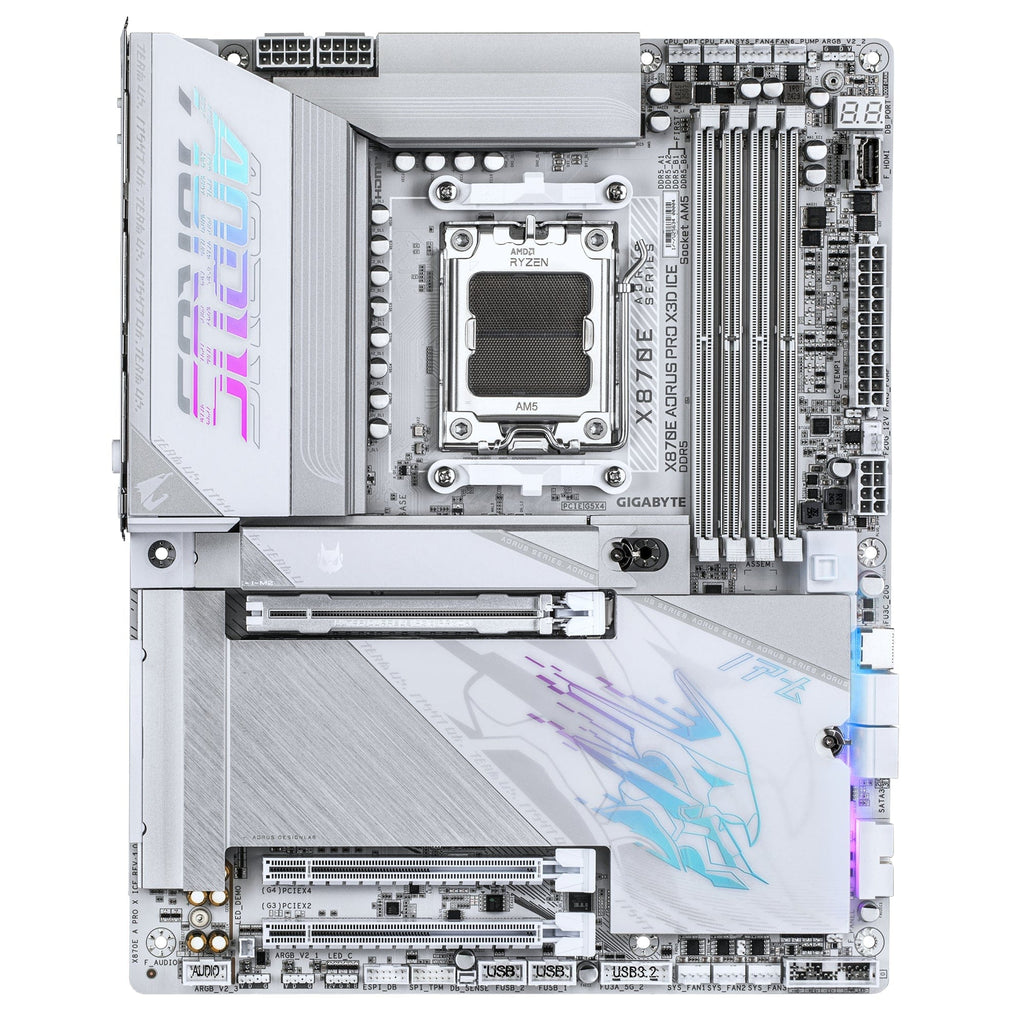

MSI GIGABYTE X870E AORUS PRO X3D ICE X870E A PRO X ICE Motherboards GIGABYTE X870E AORUS PRO X3D ICE

MSI

GIGABYTE X870E AORUS PRO X3D ICE

£360.00
iFrame
×

Hide Description

Edition X870E AORUS PRO X3D ICE
Form Factor ATX
CPU Socket AM5
Chipset AMD X870E
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4400
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800(OC)
  • DDR5 - 8000(OC)
  • DDR5 - 8200(OC)
  • DDR5 - 8400(OC)
  • DDR5 - 8600(OC)
  • DDR5 - 8800(OC)
  • DDR5 - 9000+(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • HDMI 2.1
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-80/110, PCIe Gen4x4
  • 2 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 3.0 x16 (x2 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2 Connector
  • 1 x Noise Detection Header
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 5 Gigabit LAN (5000)
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Realtek (5GbE LAN)
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Power Button
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 1 x RJ-45
  • 1 x S/PDIF-In (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 3 x USB 3.2 Gen1 Type-A
  • 5 x USB 3.2 Gen2 Type-A
  • 2 x USB 3.2 Gen2 Type-C
  • 2 x USB 4.0 Type-C / DP
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
