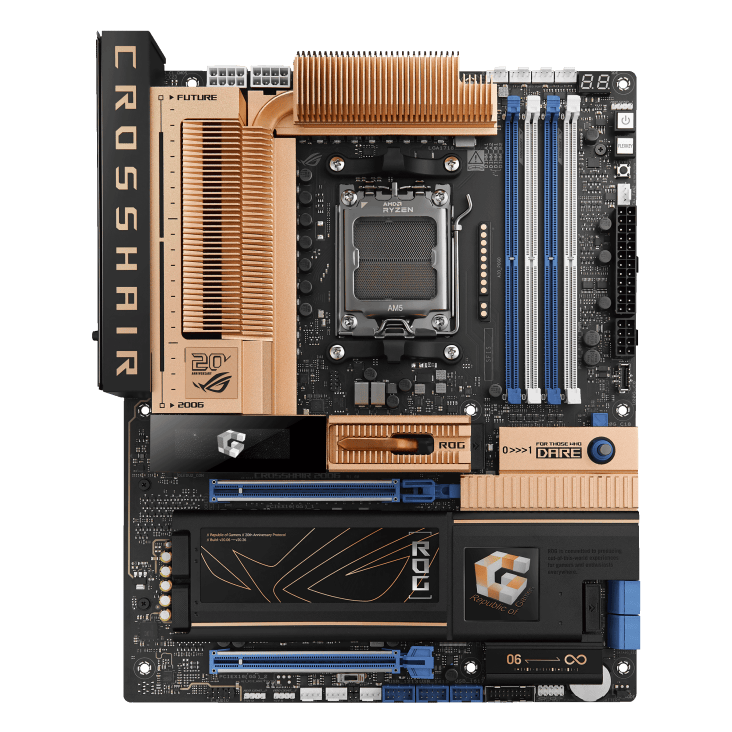

ASUS ASUS ROG CROSSHAIR 2006 X870E 90MB1PP0-M0EAY0 Motherboards ASUS ROG CROSSHAIR 2006 X870E

ASUS

ASUS ROG CROSSHAIR 2006 X870E

£676.00
iFrame
×

Hide Description

Core Specifications
Edition ROG CROSSHAIR 2006
Form Factor ATX
CPU Socket AM5
Chipset AMD X870E
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 8200(OC)
  • DDR5 - 8400(OC)
  • DDR5 - 8600(OC)
  • DDR5 - 9600(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30, PCIe Gen4x2
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 2 x PCIe 5.0 x16
  • 2 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x AIO Q-Connector
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 5 x M.2 Connector
  • 1 x ReTry Button
  • 4 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 3 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 2 x USB 3.2 Gen2x2 Connector
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
  • Wired 10G LAN
  • Wired 5 Gigabit LAN (5000)
Network Chip/Modules
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 1 x S/PDIF-Out
  • 6 x USB 3.2 Gen2 Type-A
  • 3 x USB 3.2 Gen2 Type-C
  • 2 x USB 4.0 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN174405
Model Number 90MB1PP0-M0EAY0
GTIN 4711636595704
