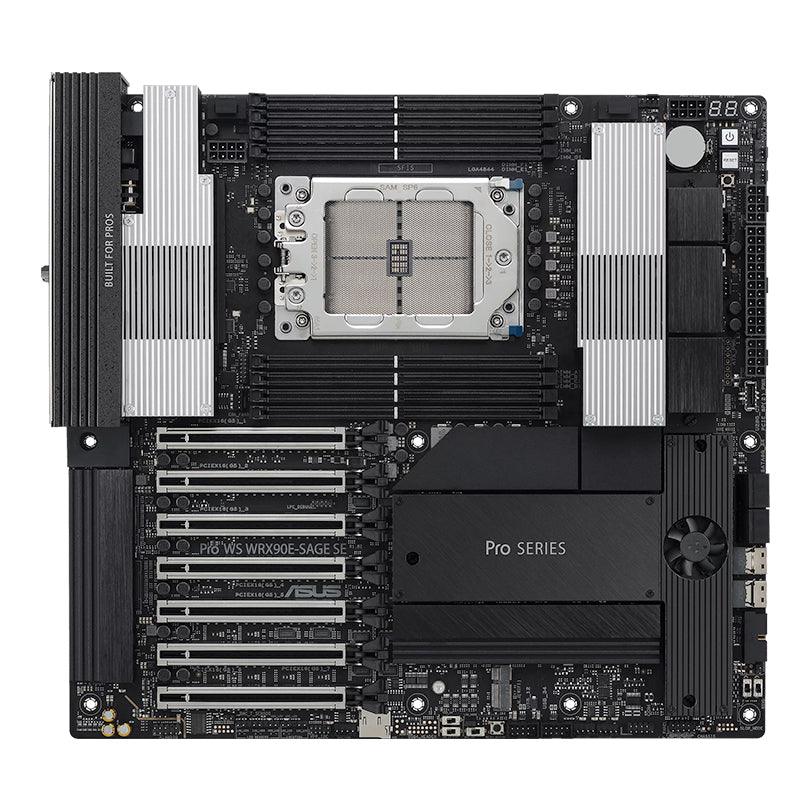

Asus ASUS AMD Threadripper Pro WS WRX90E-SAGE SE 90MB1FW0-M0EAY0 Motherboards ASUS AMD Threadripper Pro WS WRX90E-SAGE SE

Asus

ASUS AMD Threadripper Pro WS WRX90E-SAGE SE

£1,210.00
iFrame
×

Hide Description

Edition Pro WS WRX90E-SAGE SE
Form Factor EEB
CPU Socket TR5
Chipset WRX90
RAM Memory Support
Memory Type DDR5
Memory Channel Octa (8)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM (Registered)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 6 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x16 (x8 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 2 x 8-pin (Power)
  • 2 x 8-pin PCIe (Power)
  • 1 x Chassis Intrusion connector
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 4 x M.2 Connector
  • 1 x M.2 Fan Header
  • 7 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 1 x RSVD Switch
  • 1 x Safe Boot Button
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x SlimSAS Connector
  • 1 x Slow Mode Switch
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Connector
  • 1 x USB 3.2 Gen2x2 Connector
  • 2 x VRM Heatsink Fan Header
External Connectivity
Network Interface Type Dual Wired 10G LAN + Mgmt LAN
Network Chip/Modules
  • 2 x Intel (10GbE LAN)
  • 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x Mini DisplayPort
  • 3 x RJ-45
  • 1 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 2 x USB 4.0 Type-C
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 X 330 mm
