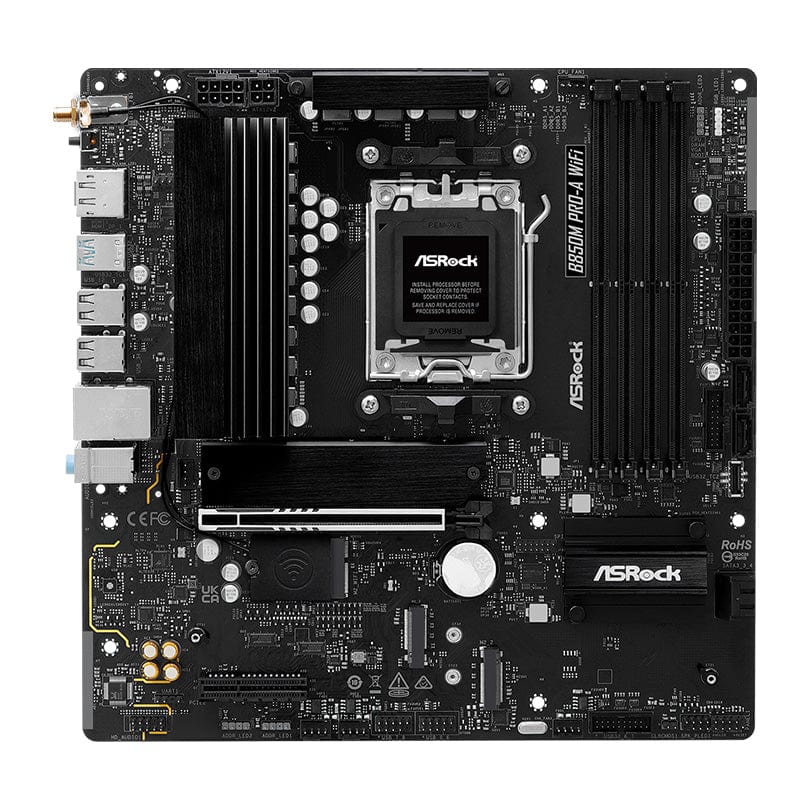

ASRock B850M Pro-A WiFi Front View

ASRock

ASRock B850M Pro-A WiFi

£136.00
iFrame
×

Hide Description

Edition B850M Pro-A WiFi
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 2 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 1 x USB 3.1 Gen2 Type-A
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
