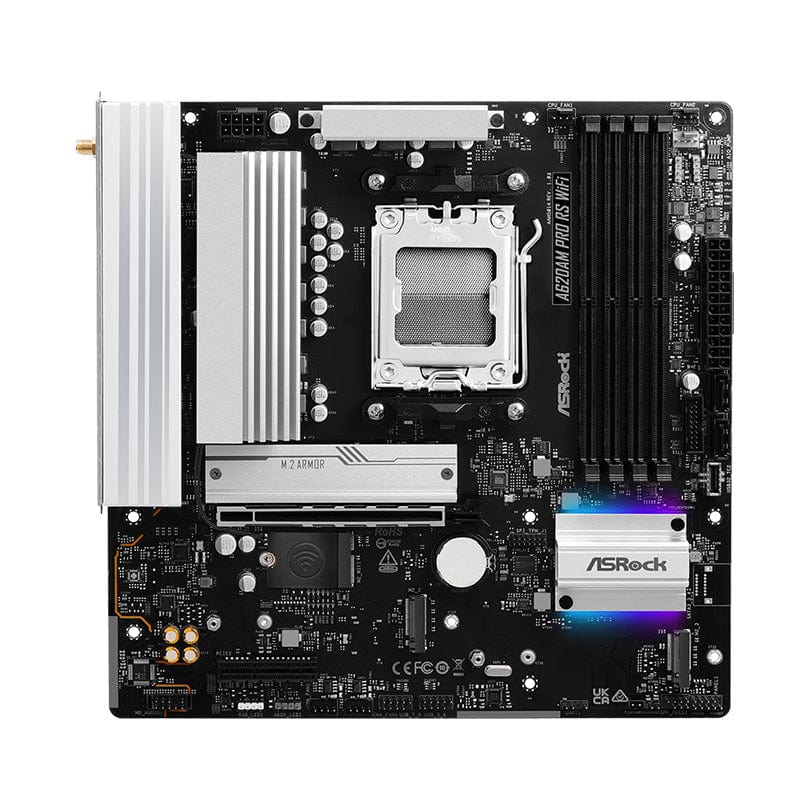

ASRock A620AM Pro RS WiFi Front View

ASRock

ASRock A620AM Pro RS WiFi

£111.00
iFrame
×

Hide Description

Edition A620AM Pro RS WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD A620A
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 7200(OC)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x16 (x2 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 2 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 3 x Addressable RGB LED 5V Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Dragon RTL8125BG (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
