Seasonic

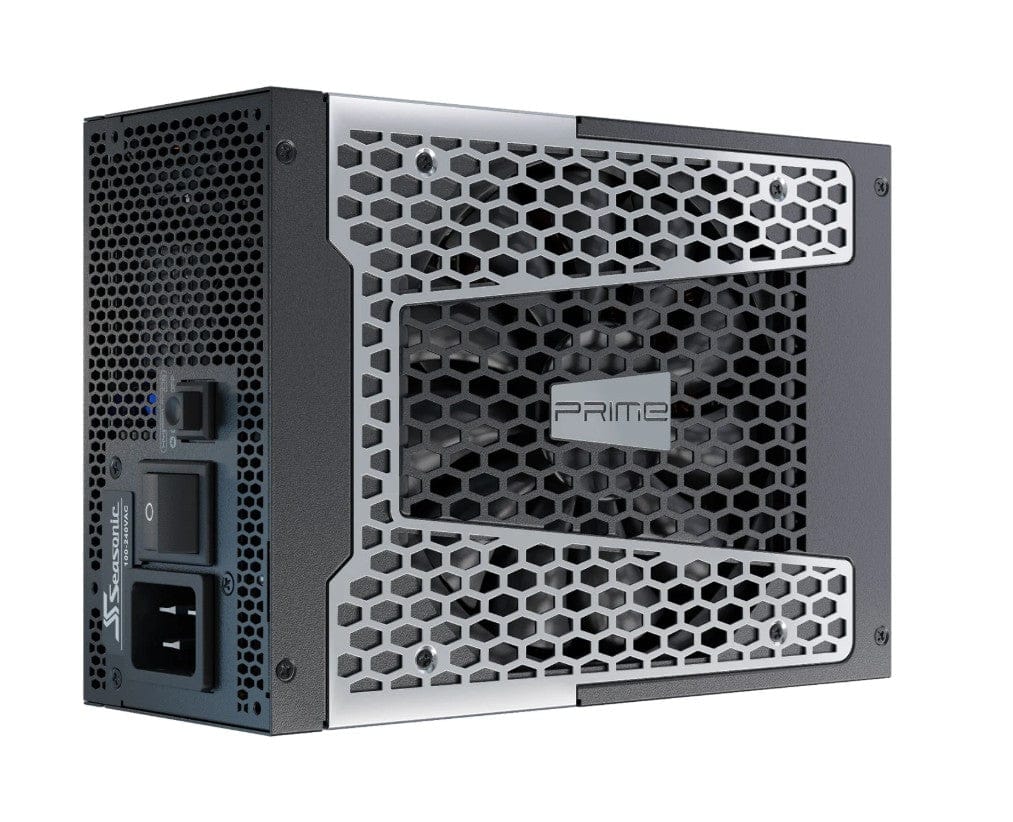

2x 1600W 80+ Platinum ATX 3.0 Seasonic PRIME PX

Regular price £772.00
Unit price  per
iFrame
×

Hide Description

The Seasonic PRIME PX 3.0 Series is built on top of all the great features of PRIME PX platform with added ATX 3.0 and PCIe 5.0 compatibility. Currently the 1600 W is equipped with native 12VHPWR connectors and Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make this power supply perfect to welcome the newest high power graphic cards and processors on the market

Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards, with the 12V-2x6 connector.

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

Form Factor ATX 3.1
Edition PRIME PX ATX 3.1
Wattage 1600 W
Energy Efficiency Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 133.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 133.3 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 12V-2x6
  • 3 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 18 x SATA
Dimensions 150 x 86 x 210 (WxHxD)
Package Type Retail
Warranty 12 Year
