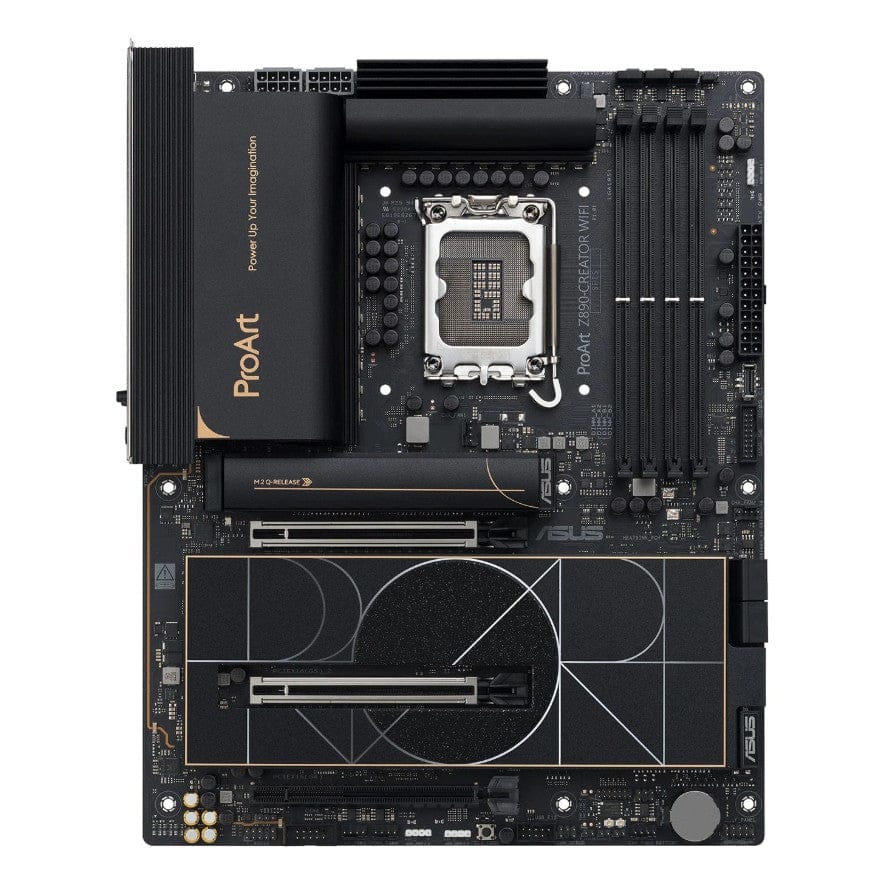

ASUS ASUS ProArt Z890 Creator WiFi Front View

ASUS

ASUS ProArt Z890 Creator WiFi

£480.00
iFrame
×

Hide Description

Edition PROART Z890-Creator WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 7600(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • HDMI
  • Thunderbolt
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Support Software RAID 0, 1, 5, 10
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 5 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
  • 1 x USB 3.1 Gen2 Type-C
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Intel (2.5GbE LAN)
  • 1 x Marvel AQtion 10GbE
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 2 x Thunderbolt 5 (Type-C) with PD & DP 1.4
  • 1 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 4.0 Type-C / Thunderbolt / DP
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
